ESC30

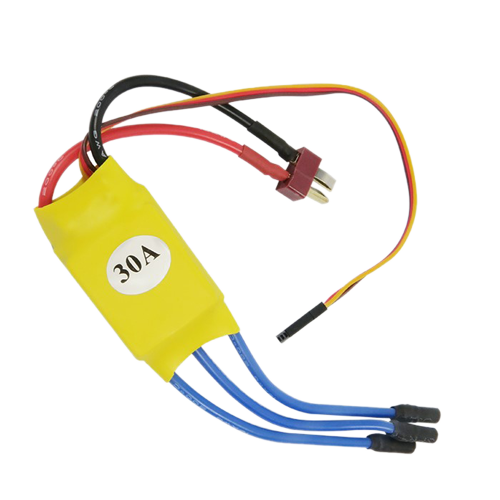

XXD Brushless ESC (Banana + T Plug) 30A
- Weld plug30 A Welding Plug Brushless ESC Electric Speed Control 4 V to 16 V Voltage for More Remote Devices Yellow Rc Toy Accessories
- ore convenient.
- Connect the motor end of the welding head is three 3.5 mm female banana.
- Connect the battery terminal is welded T plug male.
- Continuous current 30 A, instant 35 A, 40 A for 10 seconds.
- Upper limit speed of up to 300 000 within two-pole transfer switch, 12 poles outside turn 50000 rpm, 14-pole outside turn 42,000 rpm.
- 8 KHz PWM control, using speed control curves.
- Autothrottle adapt, fit more remote devices.
- BEC, MCU separate power supply, work more stable.
- 2 to 3LIPO (4 LIPO not allowed BEC output)
- BEC Output:
- Continuous 2 A, (instant 3 A)
- 2 LIPO 4 to 5 micro servos
- 3 LIPO 3 to 4 micro servos
- Specifications:
- Voltage range: 4 V to 16 V
