XL6009B

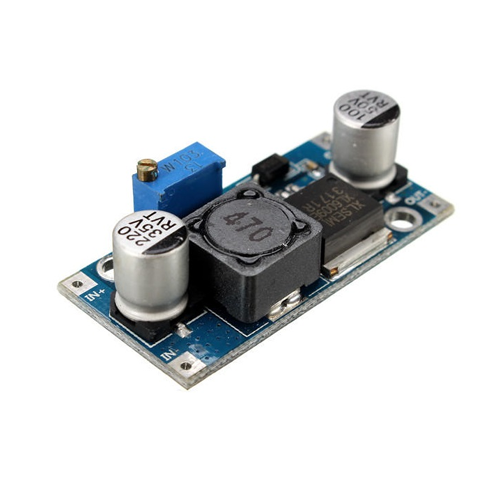

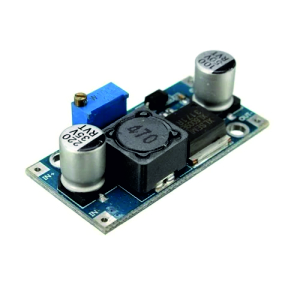

XL6009 Buck Boost Module


  • The performance is much higher than LM2577.

  • Non-isolated Boost converter.

  • It has a non-synchronous rectifier.

  • Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;

  • Low ultra wide output voltage 5 v ~ 35 v;

  • This CN6009 XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

  • The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

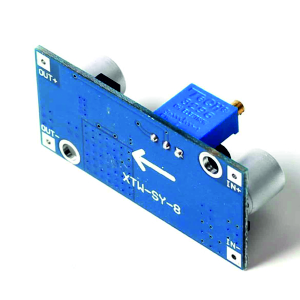

  • IN+ input positive

  • IN- input negative!

  • OUT+ output positive

  • OUT- output negative
