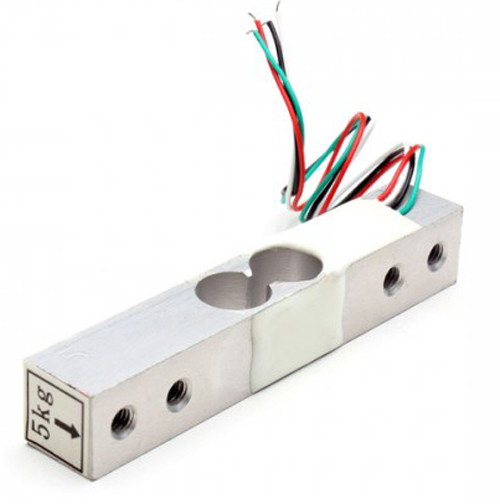

Weighing Load Cell Sensor 5KG YZC-131


  • Wiring: Red line voltage positive, Black line voltage negative

  • White Line signal positive, Green line signal negative

  • Rated Load: 5Kg

  • Rated Output: 1.0 to positive and negative 0.1mV or V

  • Nonlinear: 0.03 percent F.S

  • Hysteresis: 0.03 percent F.S

  • Repeatability: 0.03 percent F.S

  • Creep(5 minutes): 0.05 percent F.S

  • Output temperature: 0.003 percent F.S or degree celsius

  • Zero temperature: 0.02 percent F.S or degree celsius

  • Zero balance: positive and negative 0.1000 mV or V

  • Input impedance: 1066 positive and negative 20 percent ohm

  • Output impedance: 1000 positive and negative 10 percent ohm

  • Insulation Resistance: 2000 Megohms

  • Operating temperature range: minus 20 to 65 degree celsius

  • Recommended operating voltage: 5 VDC

  • Maximum operating voltage: 10 VDC

  • Protection class: IP65
