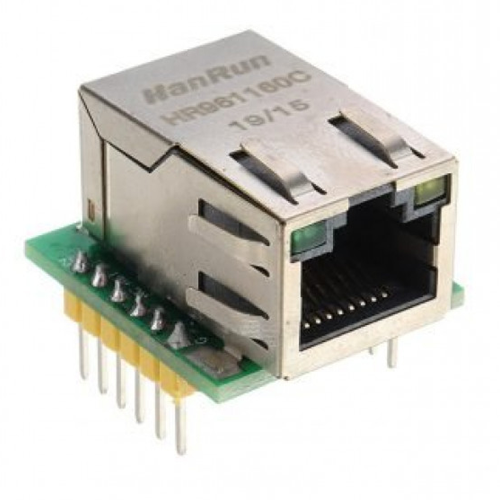

W5500M

SPI To Ethernet TCP/IP Network Module Mini


  • 80MHz high-speed SPI interface

  • Built-in hardware TCPIP protocol stack, users need almost no knowledge of complex network protocols

  • Support up to 8 Socket connections

  • Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol

  • Integrated data link layer, physical layer

  • Support power-down wake up

  • Support high-speed serial peripheral interface (SPI mode 0~3)

  • Internal 32K byte send and receive buffer

  • Embedded 10BaseT/100BaseTX Ethernet Physical Layer (PHY)

  • Support auto-negotiation (10/100-Based full/half-duplex)

  • IP fragmentation is not supported

  • 3.3V working voltage, I/O signal port 5V withstand voltage

  • LED status display (full-duplex / half-duplex, network connection, network speed, active status)

  • Ultra-small pin package for easily embedded applications

  • Provide C application routines
