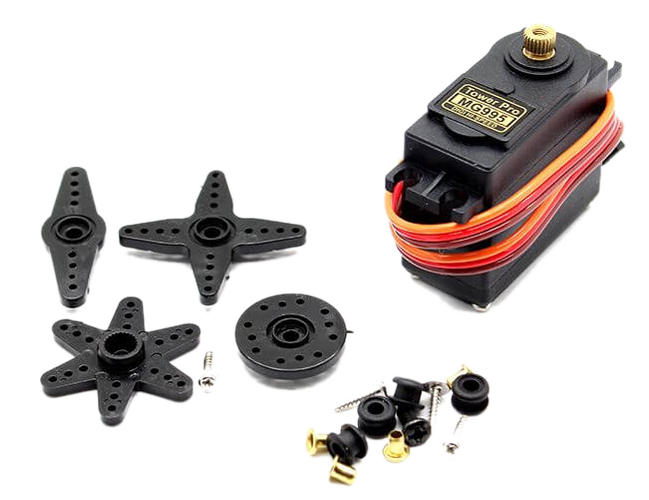

MG995

Servo MG995 12KG 180 Degree


  • Weight : 55g

  • Dimension : 40.7 × 19.7 × 42.9 mm

  • Operating Speed (4.8V no load): 20sec / 60 deg

  • Operating Speed (6.0V no load): 16sec / 60 deg ( no load)

  • Stall Torque (4.8V): 10kg/cm

  • Stall Torque (6.0V): 12kg/cm

  • Operation Voltage : 4.8 - 7.2Volts

  • Gear Type: All Metal Gears

  • Stable and shock proof double ball bearing design

  • Dead band width: 5 µs

  • Temperature range: 0 ºC – 55 ºC.

  • Control System: Analog

  • Operating Angle: 120degree

  • Required Pulse: 900us-2100us
