RP4

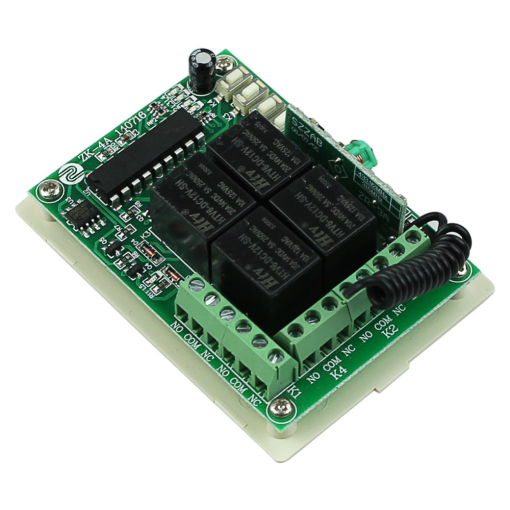

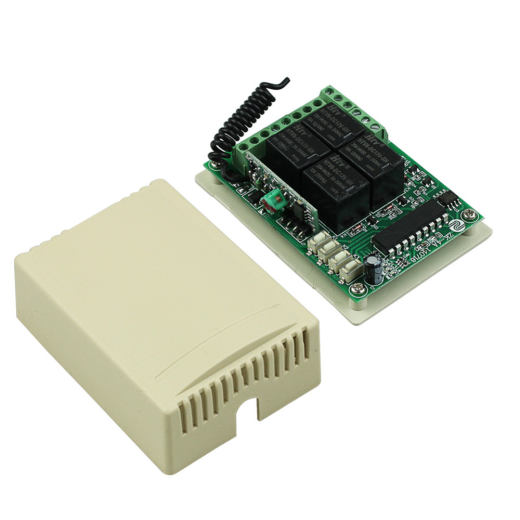

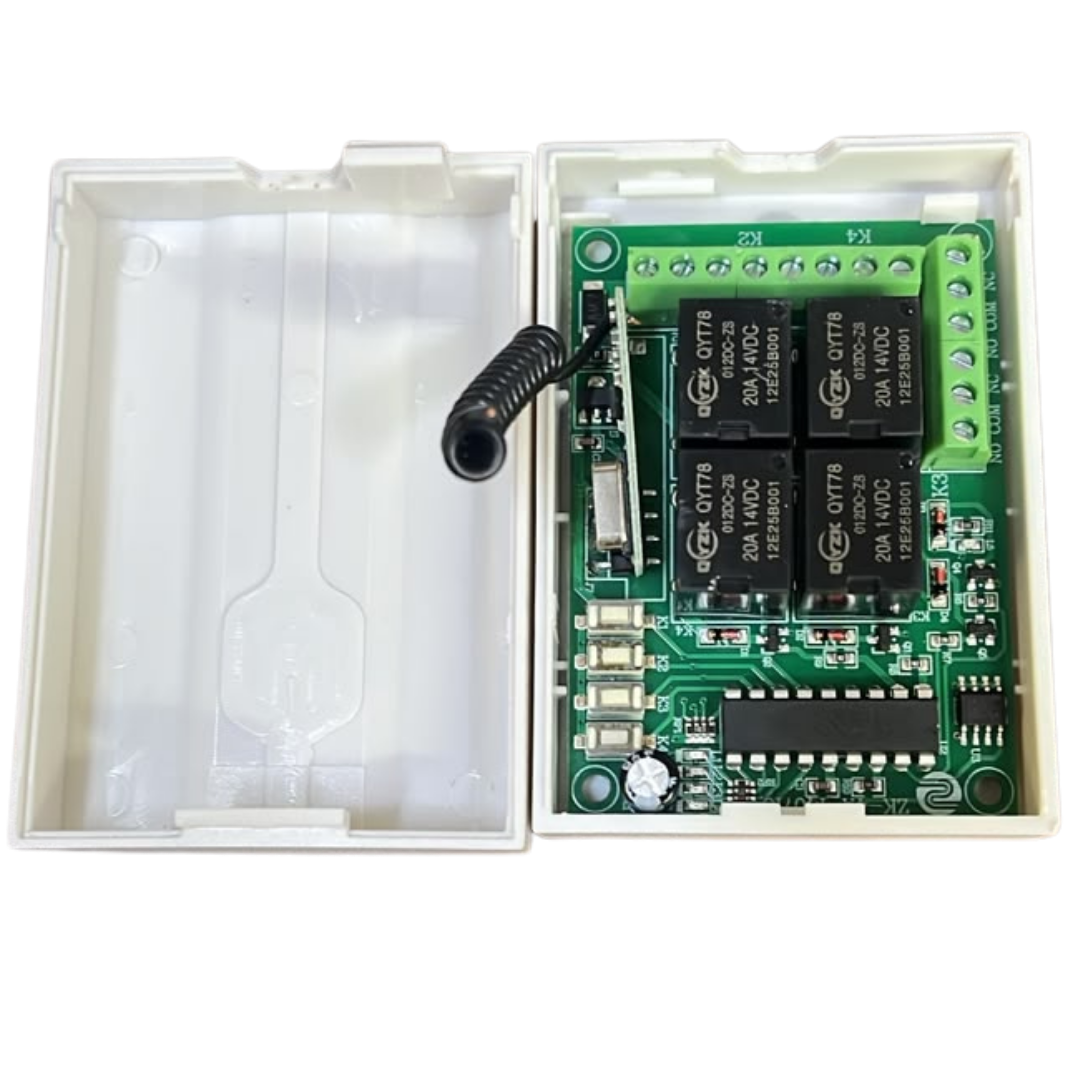

Remote Controller Module 4 Channel 12V

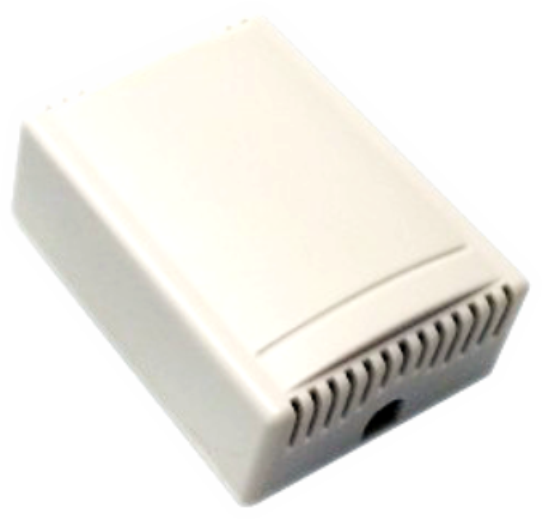

- Remote Controlller Module 4 Channel 12V DC with plastic case
- Can control 4 devices through a single controller with 12V DC input
- Current:Standby less than 6mA, Working less than 128mA
- Reciever Sensitivity: 3-105 dBm
- Working Frequency: 315 MHz
- Pairing with remote through learning code method
- Works with any remote control of same frequency, so no danger of loosing the remote
- Max. Load: 10A per Relay with resistive load less than 8 A, inductive load less than 3A
- Working mode: Momentary, Latch and Toggle
- Every relay can be set up independently
- Demodulation Method: ASK; Output data level: TTL
