LDR

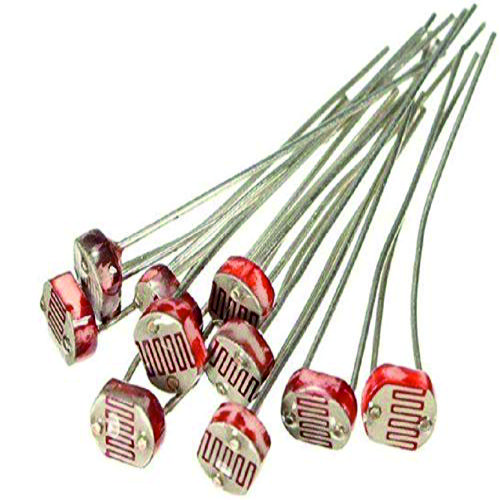

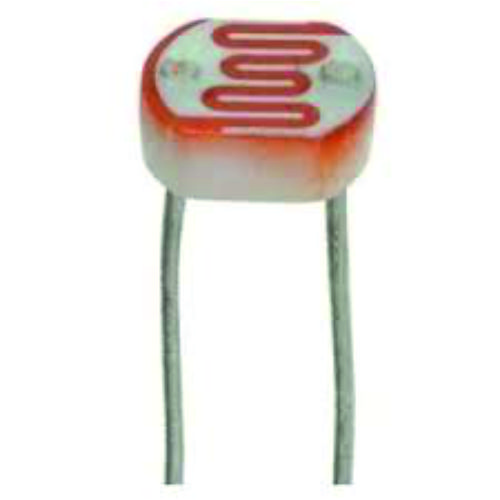

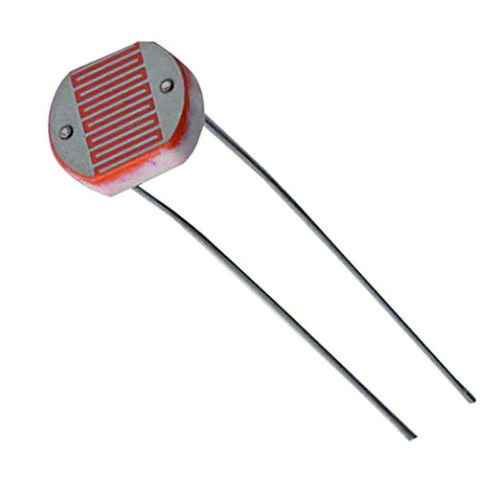

PHOTO SENSITIVE RESISTANCE 5MM


  • The Photoresistor, also known as LDR (Light Dependent Resistor), changes the resistance with the variation in the amount of light.

  • This LDR has a resistance of 5-10k Ohm in light and about 500k Ohm resistance in the dark.

  • Automatic Headlight Dimmer | Nightlight control | Oil burner flame out | Streetlight control | Absence / Presence (Beam breaker) | Position sensor

  • Diameter : 5 mm

  • Light Resistance : 10K Ohm @ 10Lux

  • Dark Resistance : 1.0M Ohm @ 0 Lux Max.

  • Voltage : 150 volt Max. Power : 100 mW

  • Operating Temperature : -30° to 70° C
