MT8870

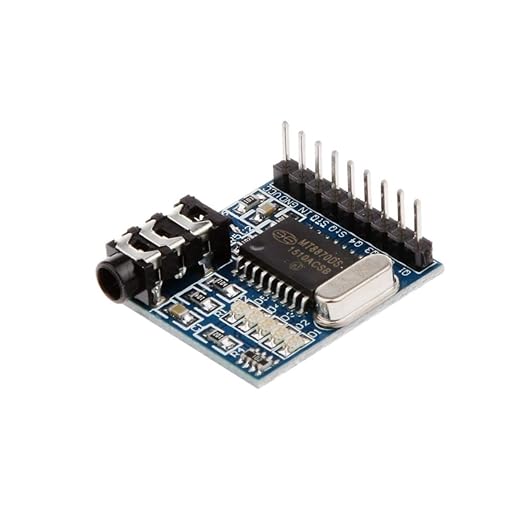

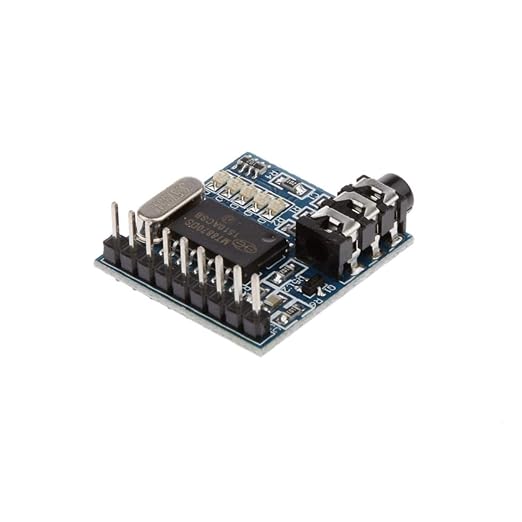

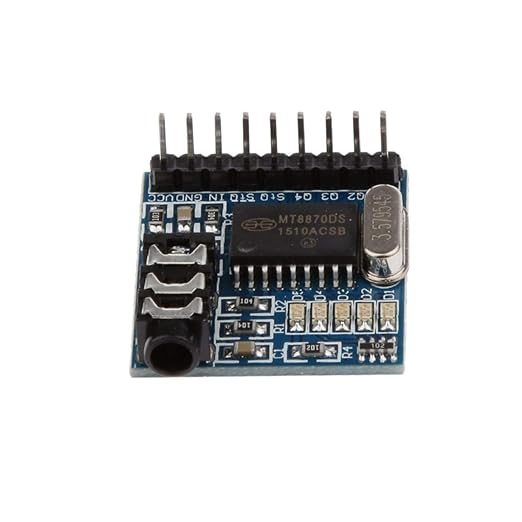

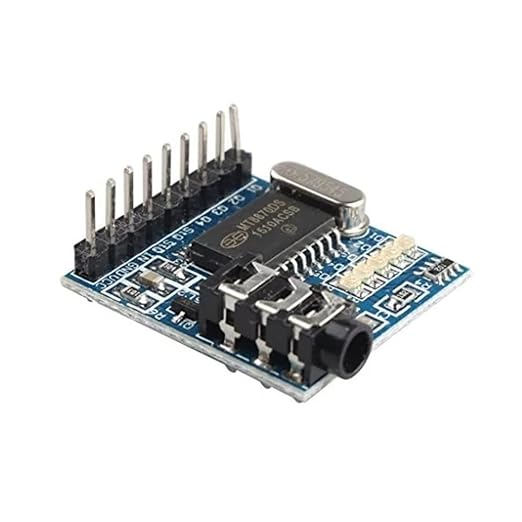

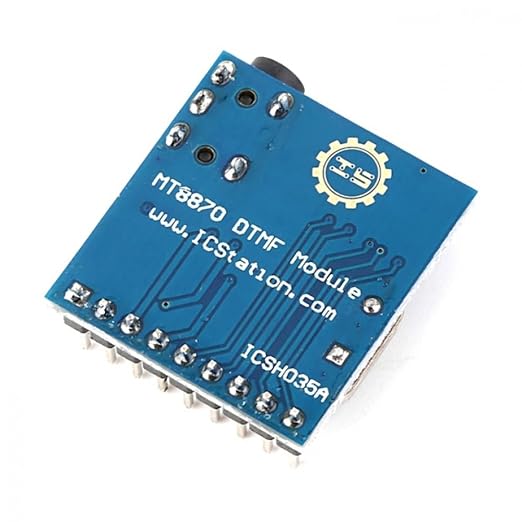

MT8870 DTMF Speech Decoding Module

Working voltage: 5V

Power Consumption: 500MW(MAX)r: 500 mw (MAX)

On-board voice input interface

On-board LED, it is very convenient to check the output state.

Onboard 5 x LED indicators for easy viewing output state

Operating Temperature : -40-+85 °C

IO Drive : Current Maximum 10mA.

PCB Size : 25.4x25.4MM

This decoding module is for mobile and fixed telephone voice dialing decoding function

Designed specifically for ARDUINO Board. Can also be used for other MCUs(AVR PIC MSP430 STM32 ARM7/9/10/11 FPGA/CPLD)

Low power consumption

Internal gain setting amplifier

Onboard 3.5mm input interface

5 Channel interface

On-board MT8870 frequency decoder chip

Does not require external circuits or wiring, it can be inserted directly into the UNO/MEGA2560/DUE board to use.

12-Digital outputs decode mobile and fixed telephone keys (0-9, * #). Also, another 4 Digital output(ABCD) can use “DTMF Dial” for Software control.
