LM2596

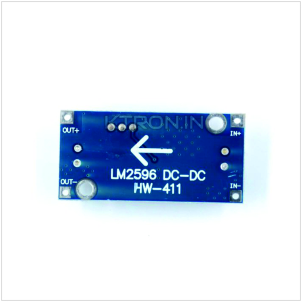

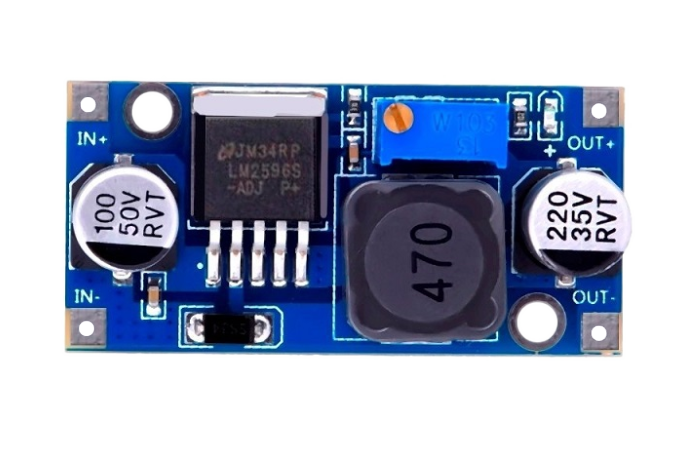

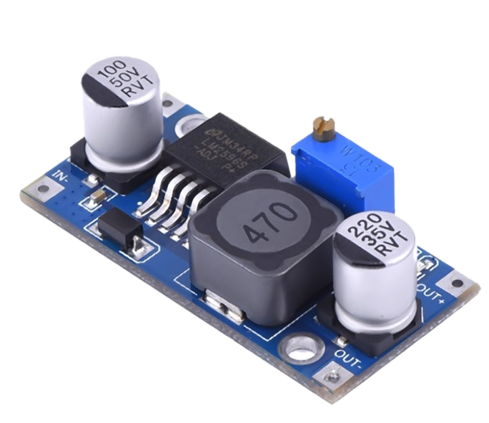

LM2596S DC-DC Step- Down Power Supply Module


  • Non-isolated step-down (BUCK) switching regulator.

  • Short circuit protection: Current limiting, self-recovery

  • Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)

  • Non-synchronous rectification

  • Conversion efficiency : 92% (highest)

  • Switching frequency: 15KHz

  • Outpur ripple: 30mA9 maximum

  • Load Regulation: ± 0.5%

  • Voltage Regulation: ± 4.75-35V

  • Outpur Voltage : 1.25-26V (Adjustable)

  • DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation.

  • These devices are available in fixed output version.
