L298N

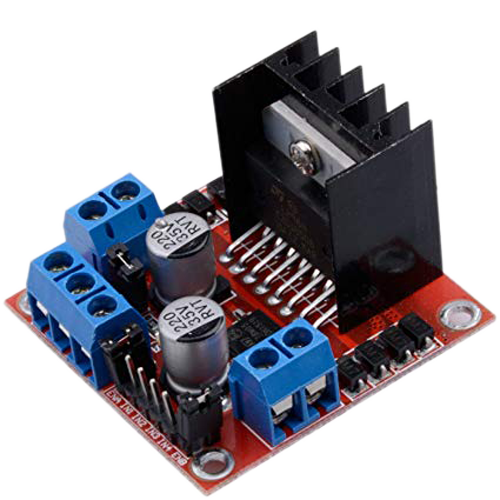

L298N Motor Driver Board Red
- Driver: L298N Dual H Bridge DC Motor Driver IC
- The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
- The peak current of driven part Io: 2A
- the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
- the operating current range of the logical part : 0 ~ 36mA
- control signal input voltage range:
- Low:-0.3V ≤ Vin ≤ 1.5V
- High: 2.3V ≤ Vin ≤ Vss
- enable signal input voltage range:
- Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
- High: 2.3V ≤ Vin ≤ Vss (control signal active)
- Maximum power consumption: 20W (when the temperature T = 75 °C)
- Storage temperature: -25 °C ~ +130 °C
