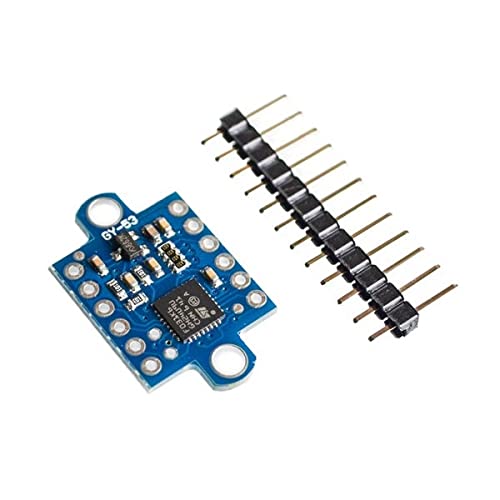

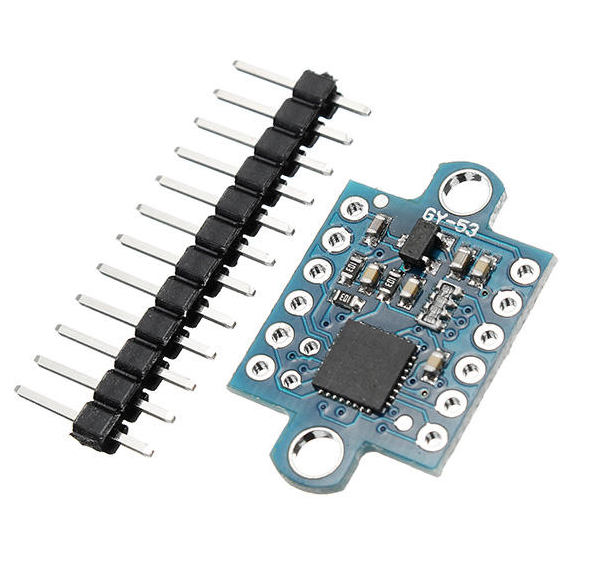

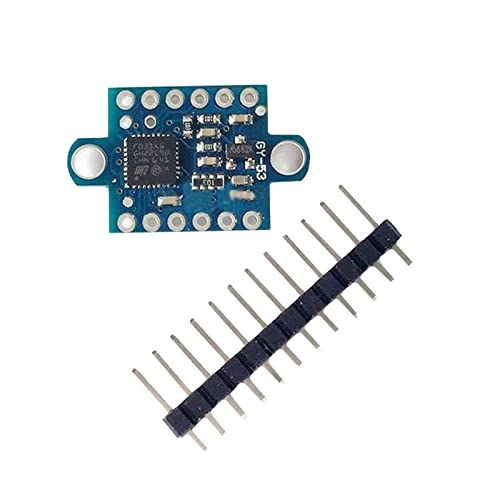

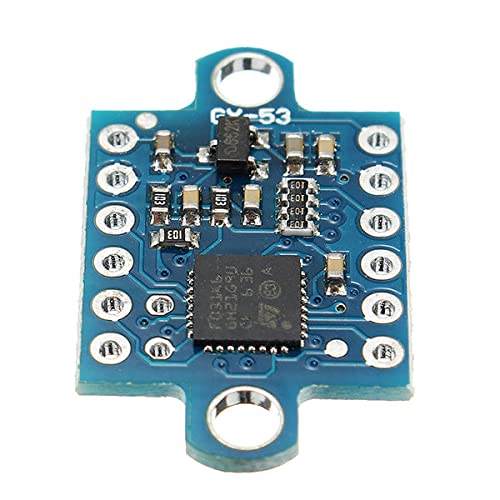

GY53 Laser TOF Flight Time Ranging Sensor


  • Easy to use, eliminating complex communications, eliminating complex algorithms, direct output distance data. Easier to connect with other MCU and computer.

  • GY-53 infrared ranging module (VL53L0X + STM32)

  • Module type: GY-53

  • Use chip: VL53L0X + STM32

  • Power supply: 3-5v (low dropout voltage regulator)

  • Range: 2 meters (dark, long distance mode)

  • Size: 25mm*15.6mm (including mounting hole)

  • Communication mode: serial output, PWM output, the chip itself IIC output.

  • Serial port and PWM to read the data code: STM32, Arduino, 51 MCU.

  • Note that due to the infrared will be affected by the outside light, in the light will affect the maximum range of measurement, will not affect the measurement accuracy.

  • Default configuration: serial baud rate 9600, automatic output, high precision mode.
