FSR406

Force Sensor SQ. 1.75 X 1.5" Long Leg


  • Actuation Force: 0.1 Newtons

  • Force Sensitivity Range: 0.1 - 10.02 Newtons

  • Non-Actuated Resistance: 10M W

  • Device Rise Time: <3 microseconds

  • Temp Operating Range: 30 - +70 ºC

  • 16MHz Clock Speed

  • 32 KB Flash Memory

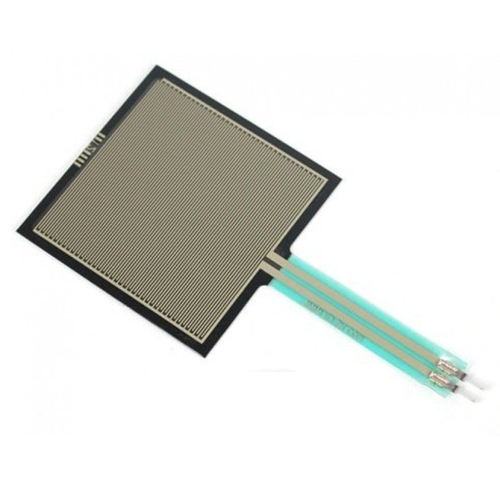

  • This is a Force sensitive resistor with a square, 1.75x1.5",sensing area.

  • This FSR  will vary its resistance depending on how much pressure is being applied to the sensing area.

  • The harder the force, the lowerthe resistance. When no pressure is being applied to the FSR its resistance will be larger than 1M.

  • This FSR can sense applied force anywhere in the range of 100g-10kg.

  • Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly.

  • There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.
