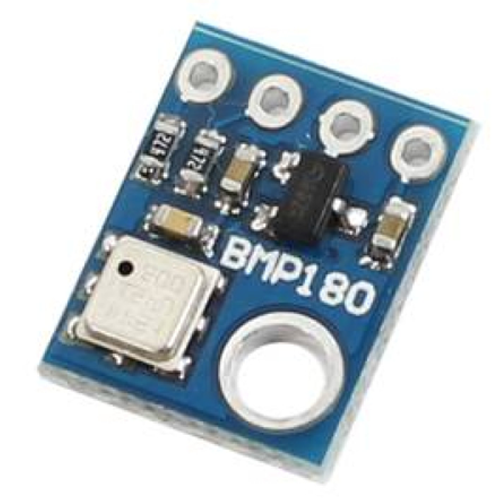

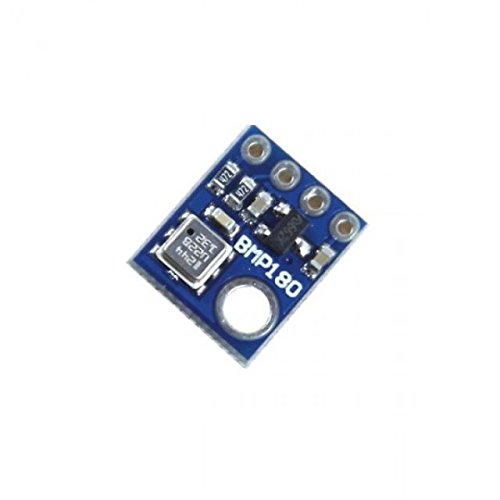

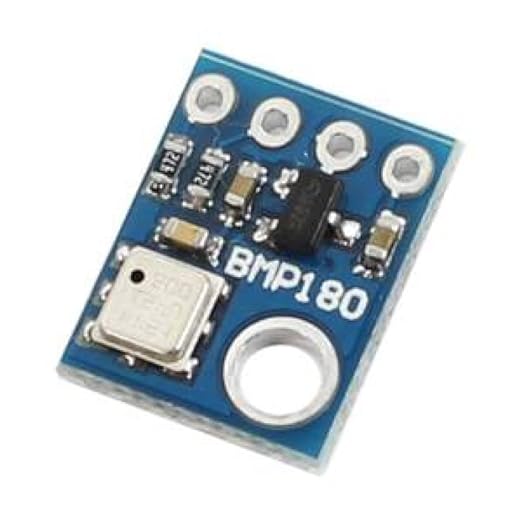

BMP180

Digital Barometric Pressure Sensor Module


  • Using I2C, the device provides pressure and temperature as 16bit values, which are used along with

    calibration data within the device are used to provide a temperature compensated altitude calculation.

  • 1.8V to 3.6V Supply Voltage

  • Low power consumption – 0.5uA at 1Hz

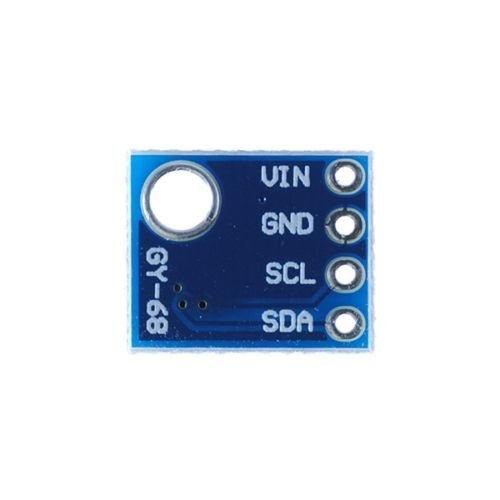

  • I2C interface

  • Max I2C Speed: 3.5Mhz

  • Very low noise – up to 0.02hPa (17cm)

  • Fully calibrated

  • Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
