ZB2L3

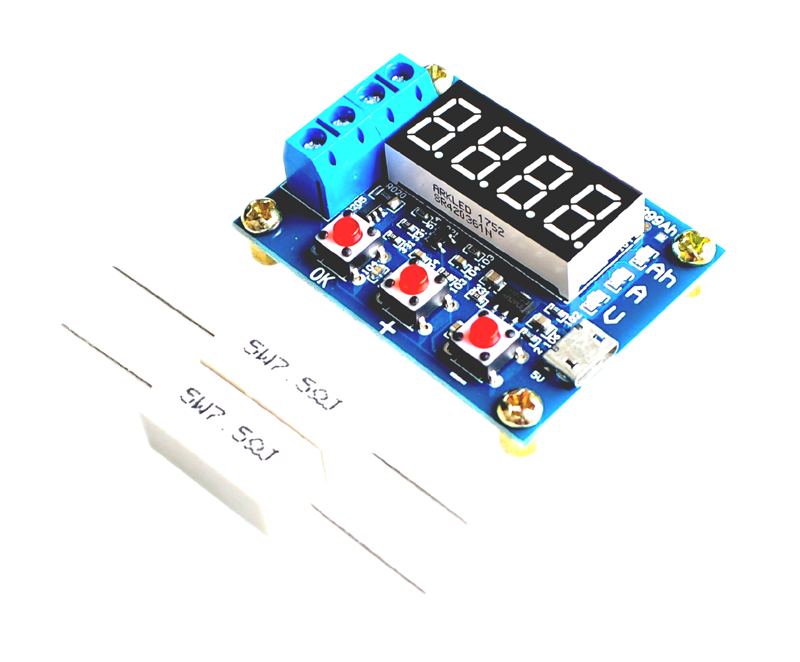

Battery Capacity Tester Eternal Load Discharge Type 1.2-12V
- Power supply voltage: DC 4.5 - 6V
- Operating current: Less than 70mA
- Discharge voltage: 1.00V - 15.00V, 0.01V resolution
- Power supply voltage: DC 4.5 - 6V (micro USB connector)
- Operating current: Less than 70mA
- Discharge voltage: 1.00V - 15.00V, 0.01V resolution
- Termination voltage range: 0.5 - 11.0V
- Supported current: Maximum 3.000A, 0.001A resolution
- Maximum voltage measurement error: 1% + 0.02V
- Maximum current measurement error: 1.5% ± 0.008A
- Board size: 50 x 37mm
- Finished size: 50 x 37 x 17mm (L x W x H maximum position size, contains copper foot height)
- Board net weight: 28g (including pillars)
- Resistor weight: about 50g (including cable)
