MOT54

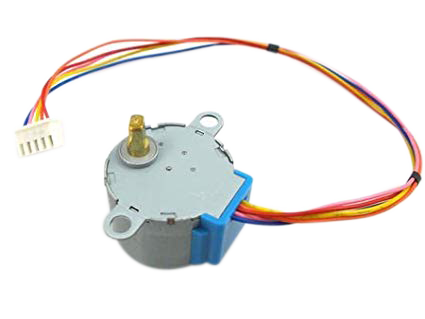

5V/4 Phase Stepper Step Motor
- High quality stepper motor with step angle of 5.625° mainly used in Air Conditioner Louver,
- Small Cooling/Heating Fan etc.ULN2003 Stepper Motor Driver Board is to use the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).
- It is easy to use Arduino or other development platform to drive the stepper motor by this diver board.
- Rated voltage: 5VDC
- Number of Phase: 4
- Step Angle: 5.625° /64
- Frequency: 100Hz
- DC resistance: 50Ω±7%(25?)
- Reduction ratio: 1 / 64.
