AA517

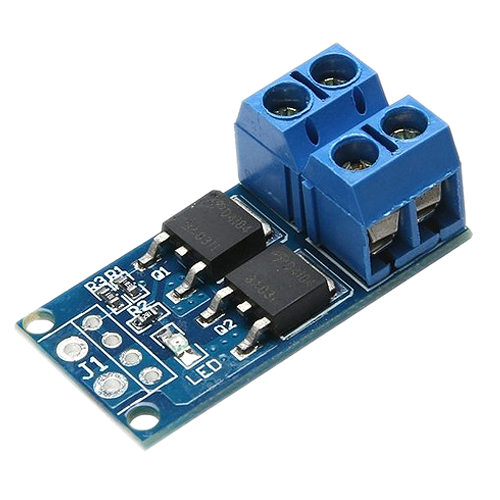

5-36V Switch Drive Mosfet Trigger Module

The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces,

DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.

Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.

Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, PWM, motor speed control, lamp brightness. etc.
