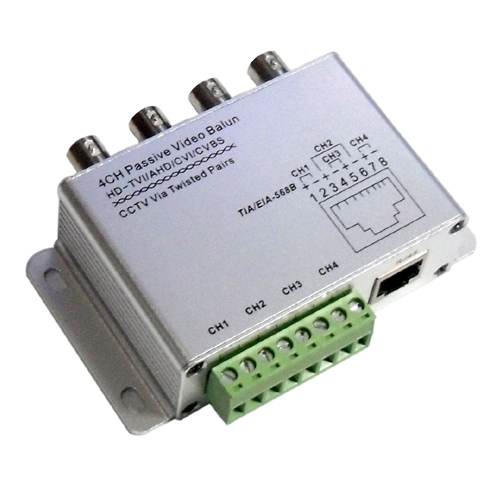

CCBV140A
4 Channel HD Video UTP Transceiver
- 4 Channel Passive HD (non-amplified) video UTP transciever
- It allows transmission of color or monochrome(B/W) CCTV video or HDCVI/AHD/HDTVI HD Video over UTP cable
- It is capable to transmit 4 Channel Live CCTV Color video signal from camera end or recieve 4 channel video signal at DVR end via 1 UTP Cable
- Transmission distance: upto 300m
- Interface:Coaxial - 4 BNC-Female; UTP- Female RJ45 connector or 4 Channel screw push terminal
- Material; Aluminium, Color: Black
- Built in holes for mounting
- Dimension: 130x70x27mm
